SEALERS

PRODUCT FEATURES

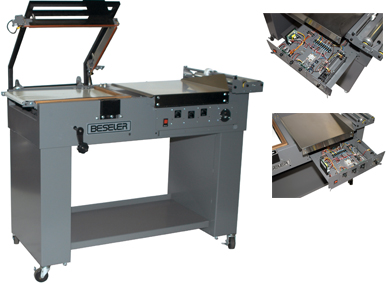

2016-MTB-III
  • 20" x 16" seal area
  • Self-adjusting seal pads
  • Easy quick change Mono seal wire
  • Fully welded heavy duty seal hand
  • Fully welded 11 gauge steel frame
  • Heavy duty automatic magnetic hold down
  • Adjustable height seal area platform
  • Auto seal temperature compensator
  • Variable speed soft start conveyor
  • Stainless steel film hold downs
  • Stainless steel product loading tray
  • Quick lock wire tensioners
  • Easy access slide out control panel
  • Micro perforator
  • Storage shelf and casters
  • Hot knife option
TWO YEAR PARTS WARRANTY
(including seal wire)
Download

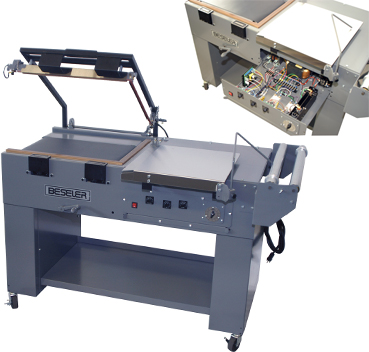

2420-MTB-II
  • 24" x 20" seal area
  • Self-adjusting seal pads
  • Easy quick change Mono seal wire
  • Fully welded heavy duty seal head
  • Fully welded 11 gauge steel frame
  • Heavy duty automatic dual magnets
  • Adjustable height seal area platform
  • Auto seal temperature compensator
  • Variable speed soft start conveyor
  • Stainless steel product loading tray
  • Quick lock wire tensioners
  • Film tension brake
  • Easy access slide out control panel
  • Micro perforator
  • Storage shelf and casters
  • Hot knife option
TWO YEAR PARTS WARRANTY
(including seal wire)
Download


3520-MTB-SL (Not Pictured)
  • Easy quick change Mono seal wire
  • Fully welded 11 gauge steel frame
  • Heavy duty automatic dual magnets
  • True film dwell control cycle
  • Auto seal temperature compensator
  • Variable speed soft start conveyor
  • Stainless steel film hold downs
  • Stainless steel product loading tray
  • New sure-lok wire tensioners
  • Easy access slide out control panel
  • Durable powder coat finish
  • Heavy duty casters
TWO YEAR PARTS WARRANTY
(including seal wire)
Download


4530-MTB-SL (Not Pictured)
  • Easy quick change Mono seal wire
  • Fully welded 11 gauge steel frame
  • Heavy duty automatic dual magnets
  • True film dwell control cycle
  • Auto seal temperature compensator
  • Variable speed soft start conveyor
  • Stainless steel film hold downs
  • Stainless steel product loading tray
  • New sure-lok wire tensioners
  • Easy access slide out control panel
  • Durable powder coat finish
  • Heavy duty casters
TWO YEAR PARTS WARRANTY
(including seal wire)
Download


SPECIFICATIONS
MODEL MACHINE SIZE (LWH) SHIPPING (SIZE/WEIGHT) POWER REQUIRED SEAL/TUNNEL AREA PACKAGES PER MINUTE MAX PRODUCT SIZE
2016-MTB-III  56" x 35" x 43"  73″ x 48″ x 59″
350 LBS.
115 VOLTS
15 AMPS
20″ x 16″
L x W
15-18  19″ x 15″
L x W
2420-MTB-II  63" x 42" x 40"  73″ x 52″ x 59″
576 LBS.
220 VOLTS 1PH
15 AMPS
24″ x 20″
L x W
15-18  23″ x 19″
L x W
3520-MTB-SL  83" x 39" x 40"  90″ x 52″ x 59″
675 LBS.
220 VOLTS 1PH
15 AMPS
35″ x 20″
L x W
15-18  34″ x 19″
L x W
4530-MTB-SL  105" x 68" x 40"  115″ x 72″ x 59″
915 LBS.
220 VOLTS 1PH
15 AMPS
45″ x 30″
L x W
15-18  44″ x 29″
L x W
Made in the USA
