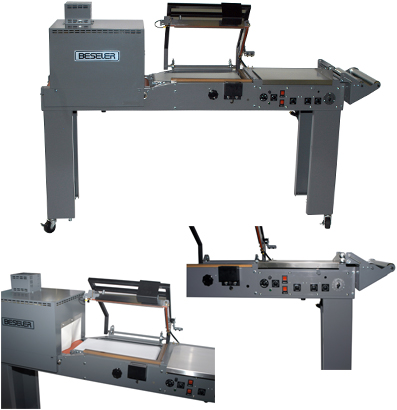

1812-MTB-II SEALER-TUNNEL

PRODUCT FEATURES
SEALERS
TUNNEL
  • 18" x 12" seal area
  • Self-adjusting seal pads
  • Easy quick change Mono seal wire
  • Fully welded heavy duty seal head
  • Fully welded 11 gauge steel frame
  • Heavy duty automatic magnetic hold down
  • Adjustable height seal area platform
  • Auto seal temperature compensator
  • Variable speed conveyor
  • Stainless steel product loading tray
  • Quick lock wire tensioners
  • Pin wheel perforator
TWO YEAR PARTS WARRANTY
(including seal wire)
  • 12" wide 6" tall 20" long tunnel chamber
  • Bottom heated solid conveyor belt
  • High velocity blower
  • Heat ducted to sides and top
  • Thermostatic temperature control
  • Variable speed 0-30 fpm conveyor
  • Standard single plug for portability
  • Finned Cal-rod heaters
  • Durable electro-static powder finish
  • 2000 watts of available heat
  • Casters included
TWO YEAR PARTS WARRANTY
(including seal wire)
Download
*Also available as an 1812-M-II without the sealer infeed conveyor*


SPECIFICATIONS
MODEL MACHINE SIZE (LWH) SHIPPING (SIZE/WEIGHT) POWER REQUIRED SEAL/TUNNEL AREA PACKAGES PER MINUTE MAX PRODUCT SIZE
1812-M-II
L-SEALER
80" x 28" x 56"  87″ x 30″ x 59″
412 LBS.
115 VOLTS
20 AMPS
18″ x 12″
L x W
10-12  17″ x 11″
L x W
TUNNEL  ONE PIECE
COMBO/UNIT
FULL SYSTEM
INCL. ABOVE
SINGLE PLUG
OPERATION
12″ x 6″ x 20″
W x H x L
10-12  11″ x 5″
W x H
Made in the USA
