Tunnels

Tunnels Beseler 2018-07-05T21:15:40+00:00

	Model	Description

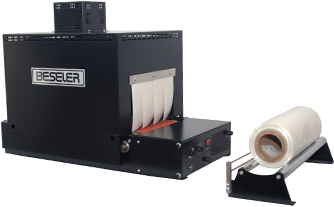

	T-611-JR (Tabletop)	FEATURES Table top Bottom heated solid conveyor belt Heat ducted to top & sides Thermostatic temperature control Variable speed 0-30 fpm conveyor Standard single plug for portability Durable electro-static powder finish 2900 watts of available heat TWO YEAR PARTS WARRANTY Download Spec Sheet

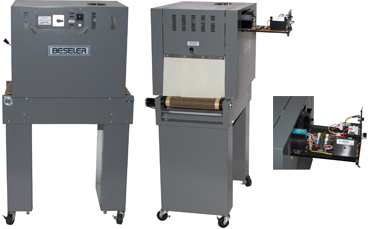

	TD-16-10	FEATURES 16″ wide 10″ tall 28″ long tunnel chamber Digital P.I.D. temperature control Automatic cool down circuit No maintenance mesh belt High velocity blower Variable speed 0-60 fpm conveyor Heat ducted to all 4 sides, top and bottom Easy access slide out control panel Durable electro-static powder finish 400 watts of available heat Emergency stop button TWO YEAR PARTS WARRANTY Download Spec Sheet

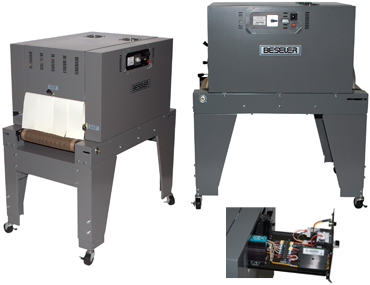

	TD-18-8	FEATURES 18″ wide 8″ tall 36″ long tunnel chamber Digital P.I.D temperature control Automatic cool down circuit No maintenance mesh belt Adjustable air dampers High velocity blower Heat ducted to all 4 sides, top and bottom Variable speed 0-120 fpm conveyor Easy access slide out control panel Durable electro-static powder finish 800 watts of available heat Emergency stop button TWO YEAR PARTS WARRANTY Download Spec Sheet
	TD-20 Series	The TD-20 Series includes TD-20-12 – 1PH TD-20-12 – 3PH TD-20-19 TD-20-26 FEATURES Digital P.I.D. temperature control Automatic cool down circuit No maintenance mesh belt Adjustable air dampers High velocity blower Heat ducted to all 4 sides, top and bottom Variable speed 0-120 fpm conveyor Easy access slide out control panel Long life heavy duty Cal rod heaters Durable electro-static powder finish 12000 – 28000 watts of available heat* Emergency stop buttons TWO YEAR WARRANTY TD-20-12 single & 3-phase units – 12000 watts of available heat TD-20-19 – 20000 watts of available heat *TD-20-26 – 28000 watts of available heat Download Spec Sheet

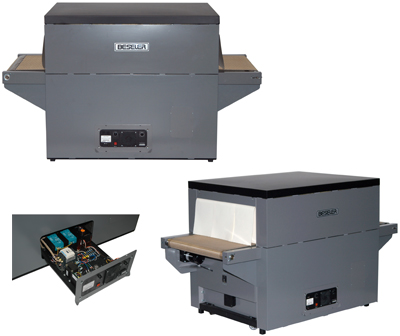

	TD-30 Series	The TD-30 series includes: TD-30-12 TD-30-19 TD-30-26 FEATURES Digital P.I.D. temperature control Automatic cool down circuit No maintenance mesh belt Adjustable air dampers High velocity blower Heat ducted to all 4 sides, top and bottom Variable speed 0-120 fpm conveyor Easy access slide out control panel Long life heavy duty Cal rod heaters Durable electro-static powder finish 16000 – 32000 watts of available heat* Emergency stop buttons TWO YEAR WARRANTY TD-30-12 – 16000 watts of available heat TD-30-19 – 24000 watts of available heat *TD-30-26 – 32000 watts of available heat Download Spec Sheet

Specifications

Model	Max Product Size (WxH)	Packages Per Minute	Area (WxHxL)	Power Required	Machine Size (LxWxH)	Shipping Weight	Shipping Size (LxWxH)
T-611-JR (Tabletop)	11" x 5"	10 -12	12" x 6" x 20"	115 VOLTS 20 AMPS	32" x 22" x 25"	200 lbs	37 x 31 x 36 in
TD-16-10	15" x 9"	15 -18	16" x 10" x 28"	220 VOLTS 1 PH 25 AMPS	33" x 27" x 58"	405 lbs	50 x 50 x 70 in
TD-18-8	17" x 7"	30 - 40	18" x 8" x 36"	220 VOLTS 1 PH 40 AMPS	44" x 28" x 52"	466 lbs	60 x 42 x 66 in
TD-20-12 - 1PH	19" x 11"	60 -75	20" x 12" x 52"	220 VOLTS 1 PH 60 AMPS	60" x 39" x 36"	850 lbs	92 x 42 x 54 in
TD-20-12 - 3PH	19" x 11"	60 -75	20" x 12" x 52"	220 VOLTS 3 PH 40 AMPS	60" x 39" x 36"	850 lbs	92 x 42 x 54 in
TD-20-19	19" x 18"	60 -75	20" x 19" x 52"	220 VOLTS 3 PH 60 AMPS	60" x 39" x 43"	900 lbs	92 x 42 x 61 in
TD-20-26	19" x 25"	60 -75	20" x 26" x 52"	220 VOLTS 3 PH 70 AMPS	60" x 39" x 50"	950 lbs	92 x 42 x 68 in
TD-30-12	29" x 11"	60 -75	30" x 12" x 52"	220 VOLTS 3 PH 60 AMPS	60" x 39" x 36"	1025 lbs	88 x 48 x 59 in
TD-30-19	29" x 18"	60 -75	30" x 19" x 52"	220 VOLTS 3 PH 70 AMPS	60" x 39" x 43"	1075 lbs	88 x 48 x 66 in
TD-30-26	29" x 25"	60 -75	30" x 26" x 52"	220 VOLTS 3 PH 70 AMPS	60" x 39" x 50"	1125 lbs	88 x 48 x 73 in
